SharePoint Tabbed Web Parts–HillbillyTabs2.0

<UPDATE>

A new version of this script with bug fixes an additional features can be found here: http://www.markrackley.net/2015/08/16/sharepoint-tabbed-web-partshillbillytabs-3-0/

</UPDATE>

About a year and a half ago I wrote a little script that allowed you to place SharePoint Web Parts into jQueryUI Tabs:

Tabbed Web Parts in SharePoint 2013 / Office 365


The script has been pretty popular with thousands of downloads, however it did have a few short comings, so I decided to update it and add some new features.  These features include:

  • Fixed an issue with hiding links in Quick Launch
  • In the previous version of the script, if a web part was not found on the page, an empty tab was still created. In this version, if a web part is not found no tab will be created for that web part.
  • Added jQuery.cookie.js to store and retrieve the value of the last visited tab to add stability and better cookie support.

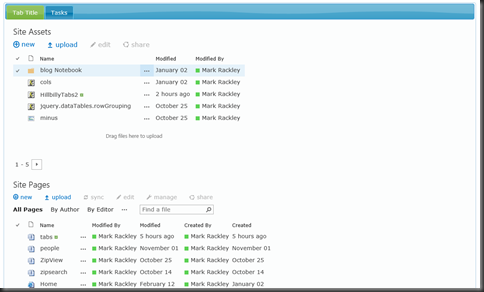

  • Added support for multiple web parts per tab.  image
  • Added the ability to automatically add all Web Parts on a page to tabs with no script modifications requried

I’ve tested the script in both Office 365 and SharePoint 2010, but feel free to take it for a spin and see what it can do.

Here’s a video showing you step by step how to implement the new features.

And here’s the script, enjoy!

<!-- Reference the jQueryUI theme's stylesheet on the Google CDN. Here we're using the "Start" theme -->
<link  type="text/css" rel="stylesheet" href="//code.jquery.com/ui/1.11.2/themes/start/jquery-ui.css" />
<!-- Reference jQuery on the Google CDN -->
<script type="text/javascript" src="//code.jquery.com/jquery-1.11.1.min.js"></script>
<!-- Reference jQueryUI on the Google CDN -->
<script type="text/javascript" src="//code.jquery.com/ui/1.11.2/jquery-ui.min.js"></script>

<script type="text/javascript" src="//cdn.jsdelivr.net/jquery.cookie/1.4.1/jquery.cookie.min.js"></script>

<script type="text/javascript">
     jQuery(document).ready(function($) {


        //Put 3 web parts in 3 different tabs
//        var webPartTitles = ["Web Part Title 1","Web Part Title 2","Web Part Title 3"];
//        HillbillyTabs(webPartTitles);

        //Create a Tab with Two Web Parts, and a second tab with one Web Part
//        var webPartTitles = ["Tab Title;#Web Part Title 1;#Web Part Title 2","Web Part Title 3"];
//        HillbillyTabs(webPartTitles);

        //Put all web parts (that have visible titles) on page that have into tabs
        HillbillyTabs();

    });


    function HillbillyTabs(webPartTitles)
    {
        if(webPartTitles == undefined)
        {
            var CEWPID = "";
            $("#tabsContainer").closest("div [id^='MSOZoneCell_WebPart']").find("span[id^='WebPartCaptionWPQ']").each(function()
            {
                CEWPID = $(this).attr("id");
            });

            var index = 0;
            $("span[id^='WebPartCaptionWPQ']").each(function()
            {
                if($(this).attr("id") != CEWPID)
                {
                    var title = $(this).prev("span").text();

                    $("#HillbillyTabs").append('<li><a href="#Tab'+index+'" id="TabHead'+index+'" onclick="HillbillyTabClick(this.id);">'+
                        title+'</a></li>').after('<div id="Tab'+index+'"></div>');

                    var webPart = $(this).prev("span").hide().closest("span").closest("[id^='MSOZoneCell_WebPart']");

                    $("#Tab" + index).append((webPart));
                    index++;
                }
            });
        } else {
        for(index in webPartTitles)
            {
                var title = webPartTitles[index];
                var tabContent = title.split(";#");
                if (tabContent.length > 1)
                {
                    $("#HillbillyTabs").append('<li><a href="#Tab'+index+'" id="TabHead'+index+'" onclick="HillbillyTabClick(this.id);">'+
                        tabContent[0]+'</a></li>').after('<div id="Tab'+index+'"></div>');

                    for(i = 1; i < tabContent.length; i++)
                    {
                        $("span[id^='WebPartCaptionWPQ']").each(function()
                        {
                            $(this).prev("span:contains('"+tabContent[i]+"')").each(function()
                            {
                                 if ($(this).text() == tabContent[i]){

                                    var webPart = $(this).closest("span").closest("[id^='MSOZoneCell_WebPart']");

                                    $("#Tab" + index).append((webPart));
                                 }

                            });
                        });
                    }
                }
                else
                {
                    $("span[id^='WebPartCaptionWPQ']").each(function()
                    {
                        $(this).prev("span:contains('"+title+"')").each(function()
                        {
                             if ($(this).text() == title){
                                $("#HillbillyTabs").append('<li><a href="#Tab'+index+'" id="TabHead'+index+'" onclick="HillbillyTabClick(this.id);">'+
                                    title+'</a></li>').after('<div id="Tab'+index+'"></div>');

                                var webPart = $(this).hide().closest("span").closest("[id^='MSOZoneCell_WebPart']");

                                $("#Tab" + index).append((webPart));
                             }

                        });
                    });
                }
            }
        }
        $("#tabsContainer").tabs();

        ShowActiveTab();

    }


    function HillbillyTabClick(id)
    {
        $.cookie("ActiveTab",id,{ path: '/' });
    }

    function ShowActiveTab()
    {
        $("#" + $.cookie("ActiveTab")).click();
    }

</script>
<div id="tabsContainer"><ul id="HillbillyTabs"></ul></div>
